Logic Board
|

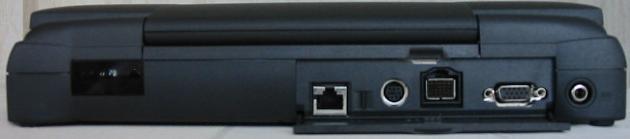

Ports
|
Power
|
Processor:
|
G3, 250MHz
|
PMMU:
|
integrated
|
FPU:
|
integrated
|
Data Path:
|
64-bit, 50Mhz
|
L1 Cache:
|
n/a
|
L2 Cache:
|
512K
|
2nd Processor:
|
none
|
Slots:
|
2 Type II PC Card (1 Type III)
|
|
USB:
|
|
ADB:
|
1
|
Video:
|
HDI-15
|
Floppy:
|
none
|
SCSI:
|
HDI-30
|
Geoports:
|
1
|
Ethernet:
|
10BaseT
|
FireWire:
|
|
Mic Type:
|
Line In
|
AirPort Ready:
|
|
Other Ports:
|
Printer, Speaker,
Headphone,
|
|
Max Watts:
|
45
|
Amps:
|
1.88
|
BTU per Hr:
|
153.9
|
Voltage:
|
100-240
|
Freq Range:
|
50-60 Hz
|
Battery Type:
|
47 Wh Lithium Ion
|
Soft Power:
|
yes
|
|
Memory
|
Video Memory
|
Logic Board:
|
32 MB
|
RAM Slots:
|
1, PB G3
|
Min - Max RAM:
|
32 MB - 160 MB
|
Min RAM Speed:
|
60ns
|
RAM Sizes:
|
4-128 MB
|
Install in Groups
of:
|
1
|
Notes:
|
Support EDO RAM devices
on its memory modules
|
|
Resolution
|
Video Memory
built-in LCD (2MB VRAM)
(built-in)
|
512 x 384
|
n/a-bit
|
640 x 400
|
n/a-bit
|
640 x 480
|
n/a-bit
|
800 x 600
|
16-bit
|
832 x 624
|
n/a-bit
|
1024 x 768
|
n/a-bit
|
1152 x 870
|
n/a-bit
|
1280 x 1024
|
n/a-bit
|
Notes: 2MB of VRAM supports
millions of colors on external monitor; Chips and
Technology 65554 PCI video controller support
hardware acceleration
|
Physical
|
Software
|
Storage
|
Introduced:
|
11/15/1997
|
Discontinued:
|
n/a
|
Form Factor:
|
PowerBook 3400
|
Gestalt ID:
|
313
|
Weight (lbs):
|
7.5
|
Dimensions (in):
|
2.4 H x 11.5 W x 9.5 D
|
|
Addressing
Modes:
|
32-bit
|
Orig SSW:
|
8.0
|
Orig Enabler:
|
|
ROM ID:
|
|
ROM Ver:
|
$077D
|
ROM Size:
|
3072K
|
AppleTalk Ver:
|
60.2
|
Mac OS
Supported:
|
8.0
8.1
8.5
8.6
9
|
|
Floppy Size:
|
1.44MB
|
Floppy Inject:
|
manual
|
Min. Int HD
Size:
|
5GB
|
Int HD
Interface:
|
ATA
|
Orig CD Speed
|
20x
|
Int CD Support:
|
yes
|
|
